Artome X20

Maximum impact for the biggest stages and largest venues.

Artome X20 is an installation-free AV solution designed for maximum performance in the most demanding large-scale environments. It delivers powerful visuals and immersive sound for large audiences, making it an ideal choice for higher education, events, auditoriums, and professional AV use where performance and control are critical.

Rulla in det

High Brightness

Large Venues

SAVE UP TO 30% or more

Your Most Expensive Projector Shouldn't Be Stuck in One Room

Ceiling-mounting a high-brightness projector in a large space — rigging, cabling, screen, and contractor labor — can cost as much as the projector itself. And once installed, it stays in that one room. Artome X20 delivers the same projection performance in a mobile solution that rolls into position in minutes, connects with a single power cable, and moves wherever it’s needed next. It also includes a powerful built-in sound system, microphone inputs, audio output for external speakers, hybrid collaboration features, and much more — everything a modern large space needs, in one device.

FULLSTÄNDIGA SPECIFIKATIONER

What’s inside.

General

Högtalare2.1 ljudsystem

Maximal ljudnivåMax. SPL 114 dB @ 1 m

Mått62.2 × 63.2 × 98.8 cm 24.5 × 24.9 × 38.9 in

Vikt59.9 kg / 132 lbs

Utrustningsrack4U

SkåpsfärgerWhite (default) / Black

Anpassningsbar ytterdörr✓ JA

Anslutningar

Mikrofoningångar2 x XLR

HDMI In1

HDMI utYes

Stereo ljudutgång (XLR)✓ JA

Artome HybriDock ✓ JA

USB✓ JA

AUX IN (3,5 mm)✕ NEJ

projektor

Kompatibla projektorer (ingår ej)Epson PU1006 / 1007 / 1008 / 2010 / PQ2008 / 2010

Ljusstyrka6,000 – 10,000 lm

Rekommenderad bildstorlek100 – 400″

Projektorvinkeljustering.✕ NEJ

Interchangeable Lens✓ JA

Motorized Lens✓ JA

BildförskjutningOptical & Digital

Ready to try the Artome X20?

Boka en live-demo eller ladda ner fullständiga specifikationer.

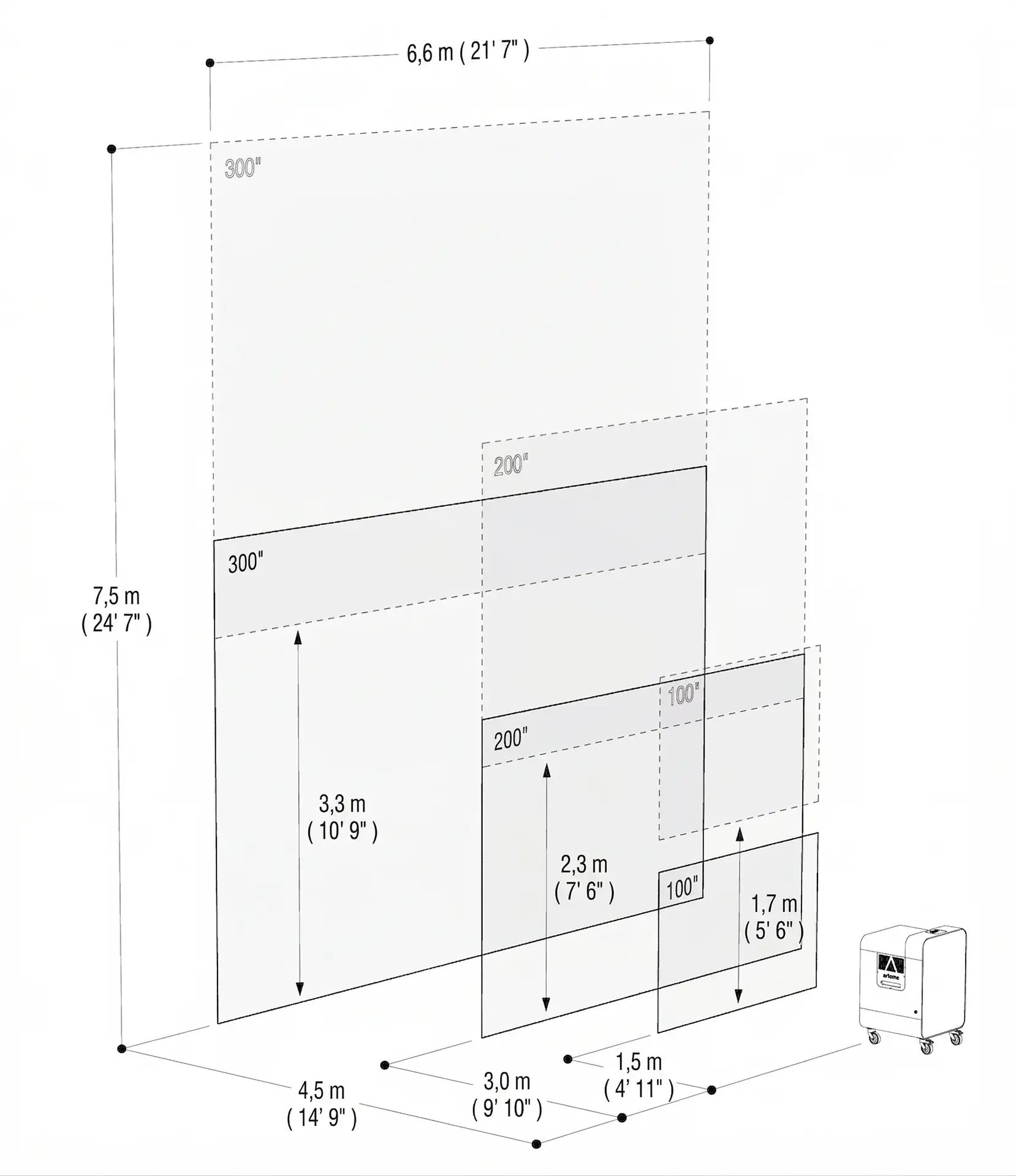

Bildstorleksreferens

Simulated using an Epson EB-PU2010 with an ELPLU04 lens.

Professional High brightness projector cart.

Ljusstyrka

Artome X20 supports selected Epson EB-PU and EB-PQ Series laser projectors with interchangeable lens options from short throw to long throw.

ModellLjusstyrkaUpplösningBildförhållande
EB-PU10066,000 lmWUXGA + 4KE (1920 × 1200)16:10
EB-PU10077,000 lmWUXGA+ 4KE (1920 × 1200)16:10
EB-PU10088,500 lmWUXGA+ 4KE (1920 × 1200)16:10
EB-PU201010,000 lmWUXGA+ 4KE (1920 × 1200)16:10
EB-PQ20088,000 lm4K (3840 × 2160)16:9
EB-PQ201010,000 lm4K (3840 × 2160)16:9
LensThrow RatioType
ELPLU040.35–0.56:1Short Throw Zoom
ELPLW060.79–1.36:1Short Throw Zoom
ELPLM151.57–2.56:1Standard Zoom
ELPLL085.27–7.74:1Long Throw Zoom
EB-PU2010W
EB-PQ2008

Lens Shift

Lens Shift allows fine adjustment of the image position up, down, left, or right without moving the Artome unit itself. This is especially useful in spaces where the unit cannot be repositioned freely, for example due to stairs, stage edges, furniture, or fixed room layouts.

Optical Lens Shift moves the image using the projector lens itself while maintaining full image quality and sharpness.

Digital Shift electronically resizes and repositions the image within the projected area, allowing additional fine tuning without physically moving the Artome unit. Because the image is digitally processed, excessive adjustment may slightly reduce image sharpness or usable resolution.

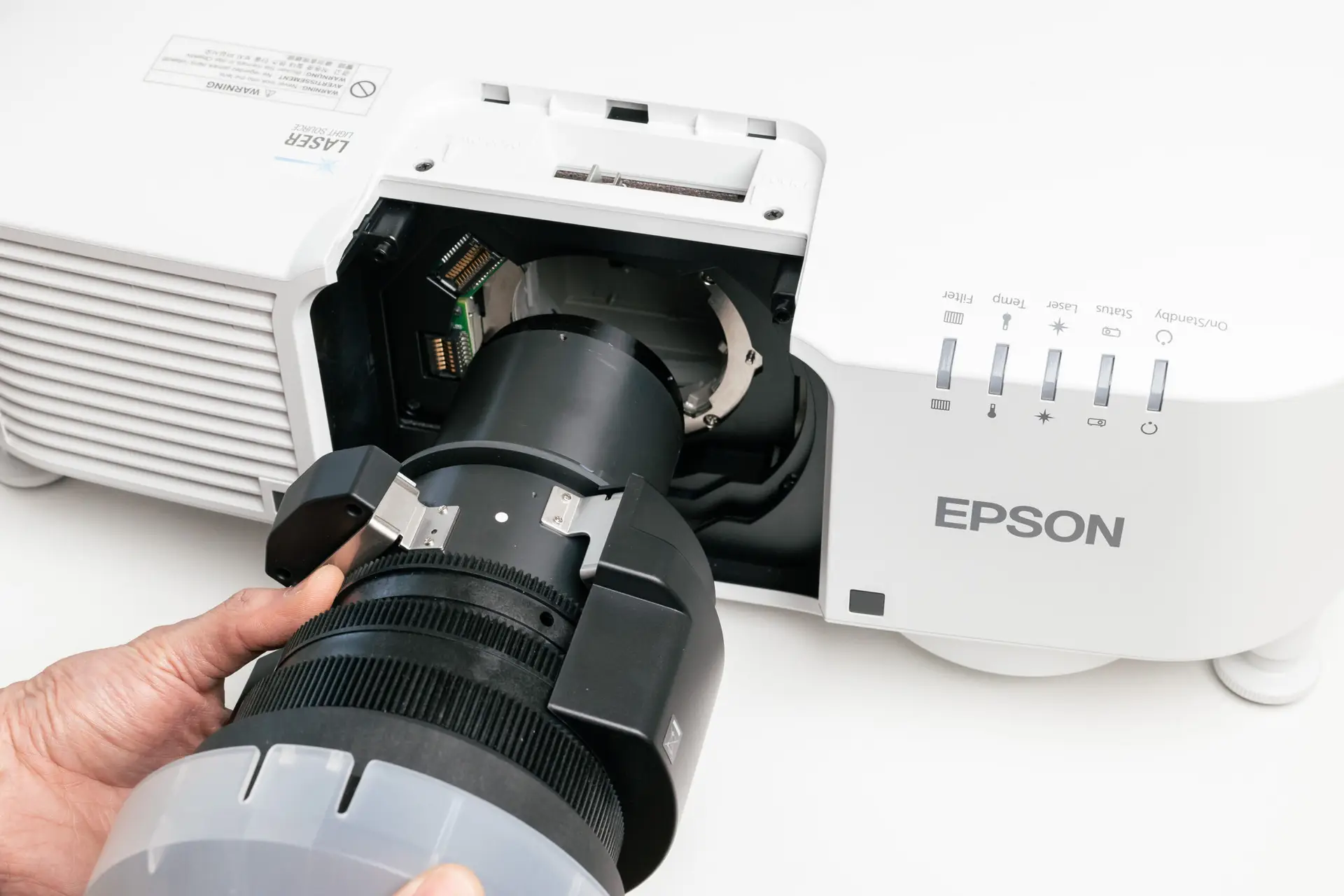

Motorized Lens Shift & Interchangeable Lenses

The Epson EB-PU Series projectors feature motorized lens shift and interchangeable lens options, making image positioning effortless in virtually any space. Mounted at a fixed 20° angle inside the Artome X20, the projector can still move the image significantly up, down, left, or right without moving the cart itself.

Choose from short throw, standard, or long throw lenses to match the projection distance and room requirements. From floor-level displays to high-wall projections, one system adapts easily to different spaces, screen positions, and installation environments.

Hybridock

HybridDock är en integrerad USB-hubb och ljudkort som tillåter anslutna USB-enheter att passera direkt till en dator, samtidigt som analoga mikrofonsignaler konverteras till digitalt ljud för en sömlös användning i hybrid- och konferensmiljöer. Den möjliggör mångsidiga integrationer och gör det enkelt att streama presentationer, evenemang eller undervisning till fjärrdeltagare.
